PPH/PVDF45度弯头（对焊式）
产品描述：
1)产品材质：PPH/PVDF
2)产品规格：DN15-DN150

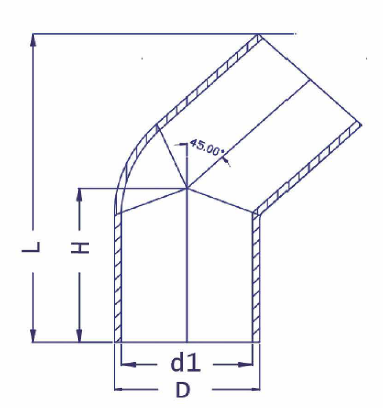

产品规格（单位：MM）
| 尺寸 | D | d1(PPH) | d1(PVDF) | L | H |
| DN15 | 20 | 15 | 16.2 | 80.7 | 43 |
| DN20 | 25 | 19.6 | 21.2 | 86.0 | 45 |
| DN25 | 32 | 26 | 27.2 | 101.2 | 52 |
| DN32 | 40 | 32.6 | 35.2 | 113.6 | 58 |
| DN40 | 50 | 40.8 | 44 | 131.0 | 66 |
| DN50 | 63 | 51.4 | 57 | 150.4 | 75 |
| DN65 | 75 | 61.2 | 67.8 | ||
| DN80 | 90 | 73.6 | 81.4 | ||
| DN100 | 110 | 90 | 99.4 | ||
| DN125 | 140 | 114.4 | 126.6 | ||
| DN150 | 160 | 130.8 | 144.6 |
