PPH/PVDF管帽（承插式）
产品描述：
1)产品材质：PPH/PVDF
2)产品规格：DN15-DN100
![S1UX%VK]%)F8VKQS`PTPUI2.png](http://cdn055.yun-img.com/static/upload/bjminghuaborui/team/20190806141046_47357.png "20190806141046_47357.png")

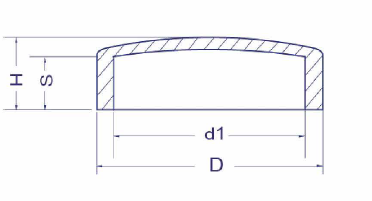

产品规格（单位：MM）
| 尺寸 | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | DN65 | DN80 | DN100 |
| d1 | 19 | 24 | 31 | 39 | 49 | 62 | 73.6 | 88.5 | 108.5 |
| D | 28.5 | 34.5 | 42.5 | 51.5 | 63.5 | 80.5 | 92 | 113 | 133 |
| S | 16 | 18 | 20 | 22 | 26 | 30 | 32.91 | 36 | 42 |
| H | 19.2 | 21 | 23.3 | 25.6 | 28 | 35.1 | 39 | 43.6 | 48.8 |
